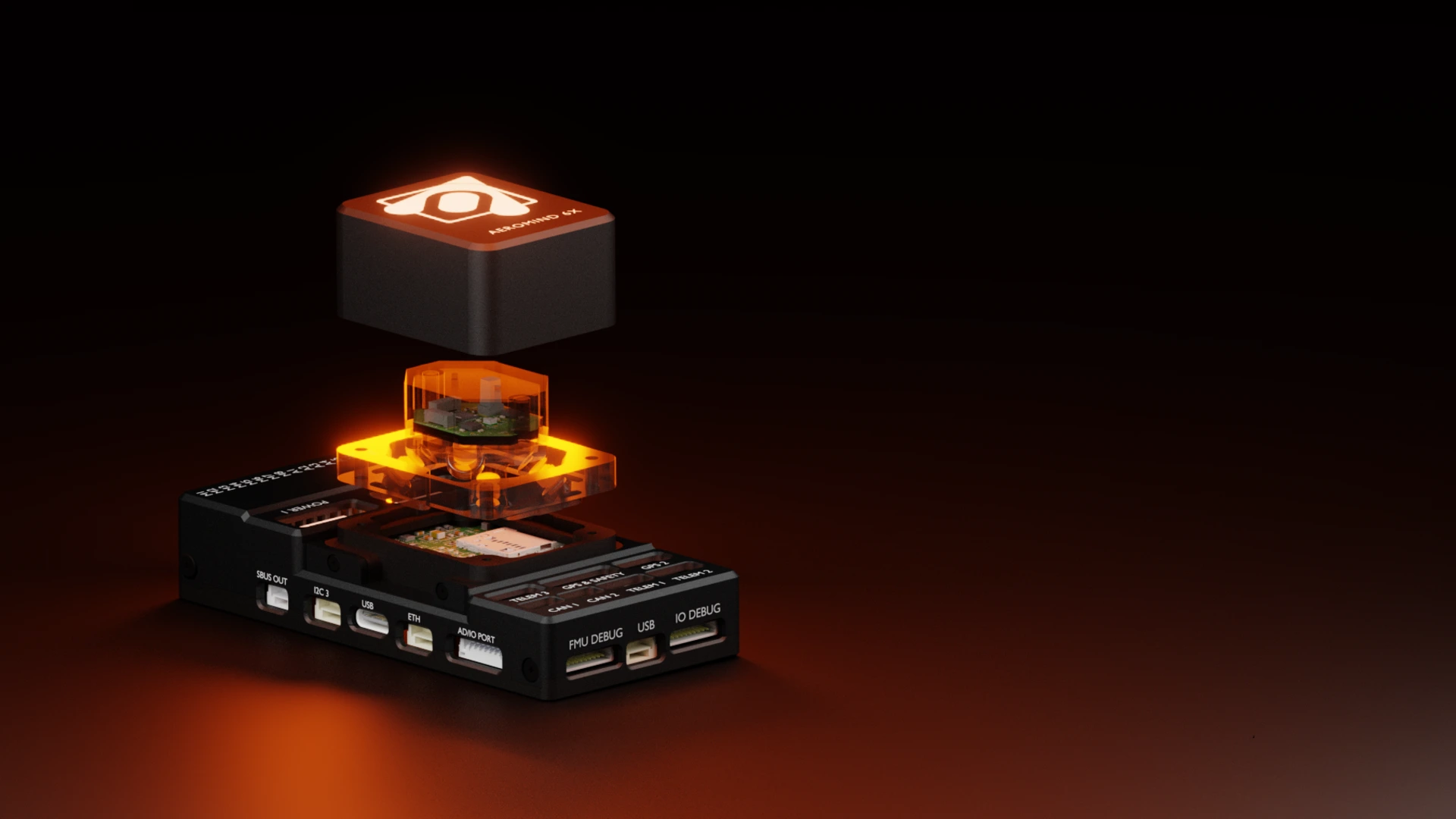

Relaible Sensing at High Vibration
Reduces high-frequency noise and mechanical resonance, ensuring your drone’s state estimation remains rock-solid even in harsh conditions.
Unleashing Superior Performance with Premium Sensors
Mission Ready for Harsh Weather & High Altitudes
Specification
Processor
STM32H753 Arm® Cortex®-M7
Coprocessor
STM32F103
IMU
3x 6-axis MEMS Sensor [Gyro ±2000 dps, Accel ±32 g, low-noise]
Compass
3-axis MIL-Grade magnetometer, ±800μT range, 0.015 μT resolution
Barometer
2x MEMS barometric Sensor [ 30–110 kPa, ~5 cm altitude accuracy]
TF Slot
1x MicroSD card
Interface Details
Actuator Outputs
8 x MAIN + 8 x AUXILARY
GPS
GPS 1: USART1 + I2C + safety switch (10 Pin GH 1.25mm)
GPS 2: UART8 +I2C (6 Pin GH 1.25mm)TELEM
3 x UART (6 Pin GH 1.25mm)
Ethernet
1 x Port with 10/100 Mbps (4 Pin GH 1.25mm)
UART
1 x UART 4
Drone CAN
2 x CAN (4 Pin GH 1.25mm)
RC
1 Dedicated PPM input +
1 Dedicated SBUS input with RSSISBUS
1 x S.BUS Out Port
A/D IO
2 x 3.3V Analog IO Pins
USB
1 x Type-C Connector + 1 x 4 Pin GH 1.25mm Connector
