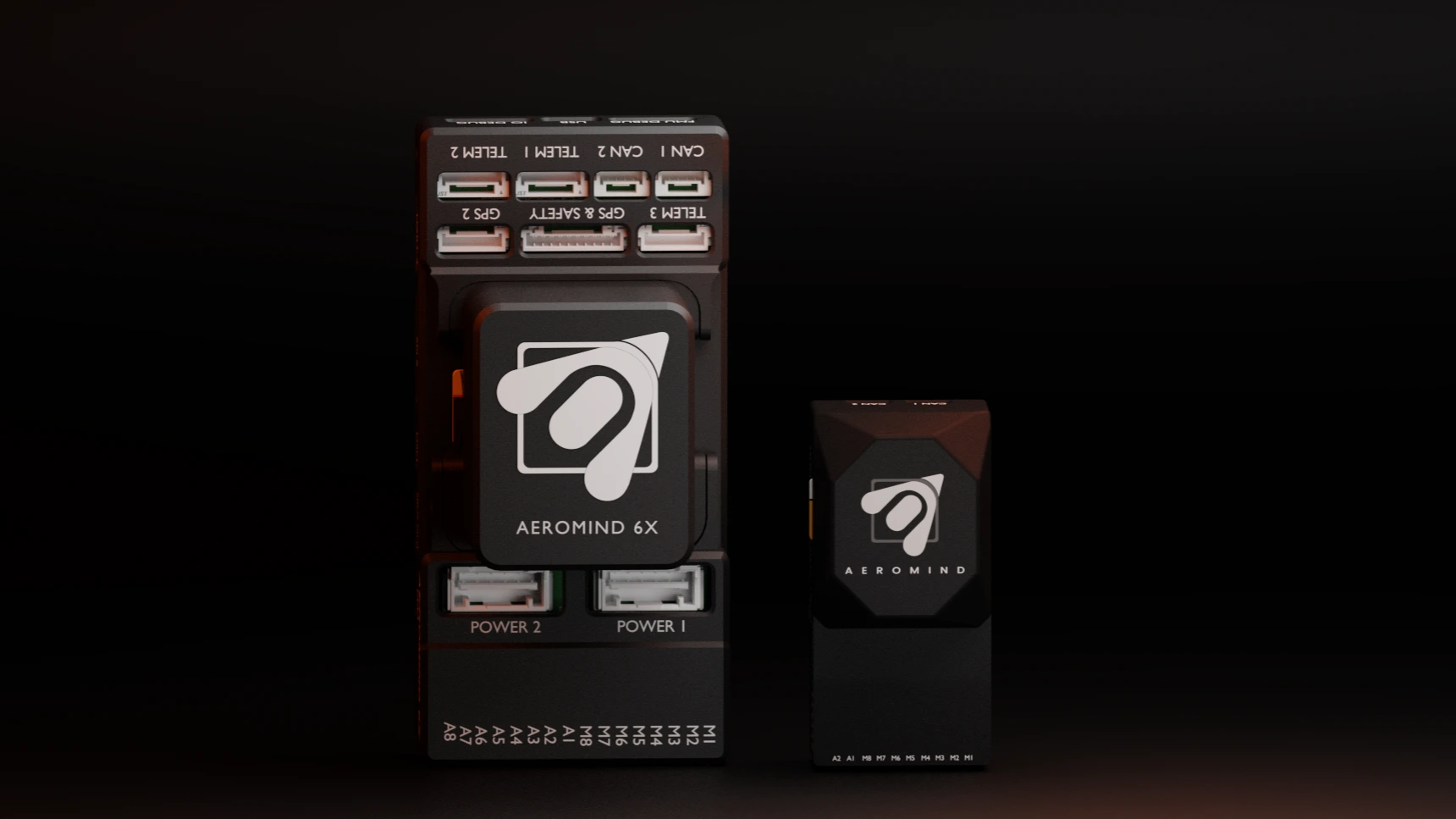

Small form factor. Uncompromised Performance.
AeroMind™ 6X Nano is a compact, high-performance flight controller designed for size-constrained UAV platforms without sacrificing stability, reliability and capability.
Direct 12S Power Input
Supports 3S-12S direct battery power input with built-in voltage monitoring.
Weather Resistant Sensors
With additional temperature regulation with proprietary damping, the Nano offers elite performance even when small.
Dedicated Current Sense Input
Digital Interface for accurate current sensing.
Specifications
Processor | STM32H753 Arm® Cortex®-M7 |
Coprocessor | STM32F103 |
IMU | 3x ICM 45686 |
Compass | PNI RM3100 |
Barometer | 2x ICP20100 |
Interfaces | |
Actuator Outputs | 16 - 8 MAIN 8 AUXILARY |
Power Input | 2 - I2C 5V |
GPS | 2 - 1 interface with USART1 +safety switch (GPS1) 1 interface with UART8 (GPS2) |
TELEM | 3 |
I2C | 1 - [ I2C3 interface ] |
CAN | 2 |
PPM RC | 1 Dedicated R/C input for PPM |
SBUS/DSM/RSSI | 1 Dedicated R/C input for DSM and S.Bus with analog / PWM RSSI input |
SBUS out | 1 |
SPI | 1 [SPI6 interface] |
ADIO | 1 AD3.3/ADC6.6 |
UART | 1 - UART4 |
USB | 2 - 1 Type C 1 JST-GH |
TF Slot | 1 ( Supports MicroSD card for Flight Logs) |
