Your First Step in Building Drones
Aeromind™ Lite
AeroMind Lite is built for students, and first-time drone builders who want to learn the right way on real avionics, not shortcuts.
Simplified, Not Compromised
Specification
Processor | STM32H743 Arm® Cortex®-M7 |

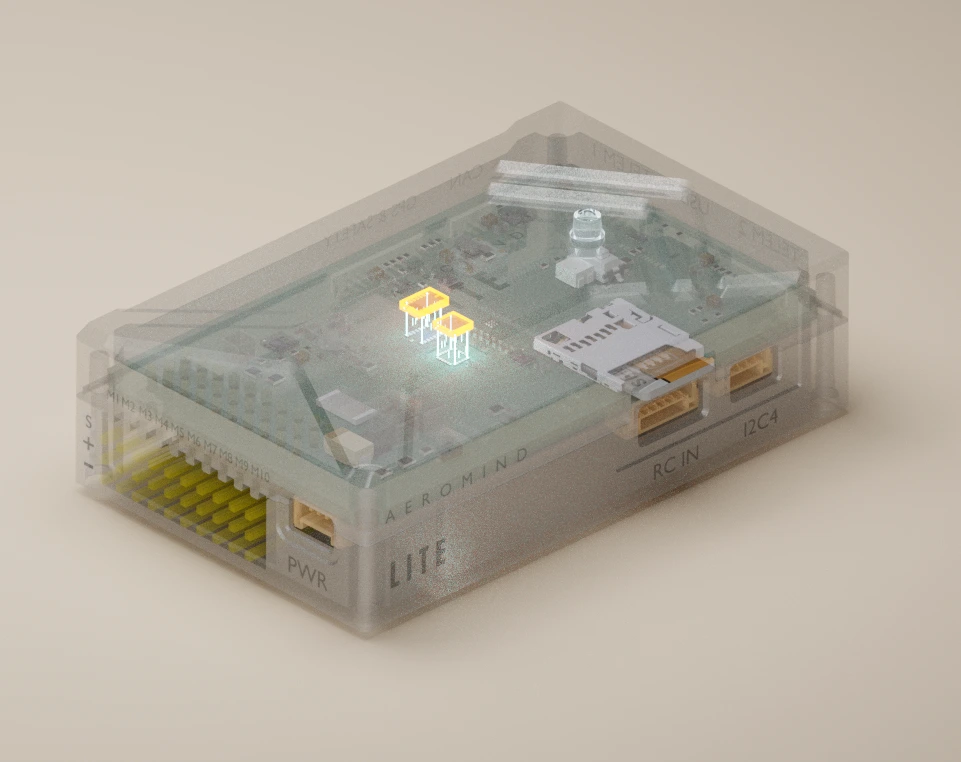

IMU | 1x ICM 45686 + 1x BMI 088 |
Compass | IST810 |

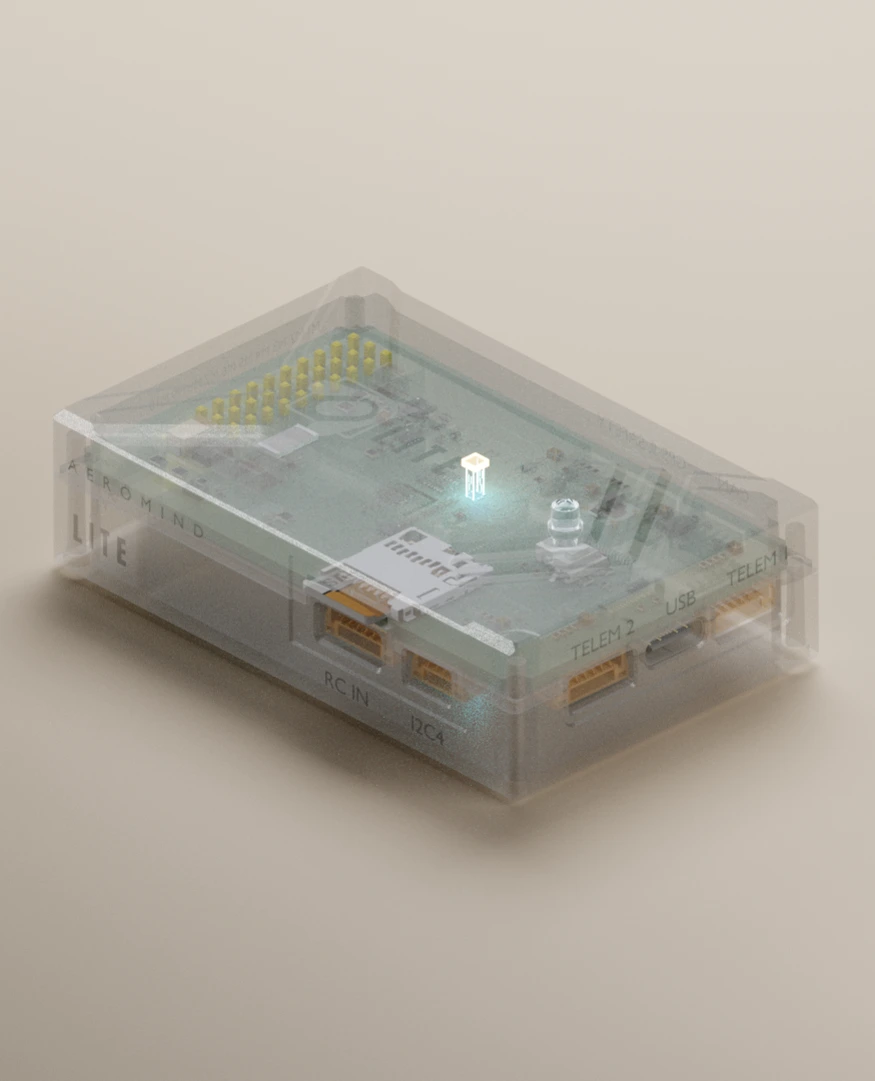

Barometer | 1x ICP20100 |
Interfaces | |
Actuator Outputs | 10 - 8 MAIN 2 AUXILARY |
Power Input | 2S-6S [8.4V - 54V ] Direct DC Power input |
GPS | 2 - 1 interface with USART1 +safety switch (GPS1) 1 interface with UART8 (GPS2) |
TELEM | 2 |
I2C | 1 - [ I2C3 interface ] |
CAN | 1 |
PPM RC | 1 Dedicated R/C input for PPM |
SBUS | 1 Dedicated RC input S.Bus |
UART | 1 - UART4 |
USB | 1 Type C |
TF Slot | 1 ( Supports MicroSD card for Flight Logs) |
Start with the Right Foundation.
AeroMind Lite gives you control, clarity, and confidence in every flight.
