Specification
|
Controller |
STM32G4 (mixed-signal MCU) |
|
Interface |
DroneCAN |
|
Sensors |
3-axis Magnetic Sensor for Heading |
|
Receiver |
u-blox M9N high precision GNSS module |
|
GNSS Bands |
E1B/C, E5a, L1C/A, L5 |
|
GNSS |
Galileo, GPS / QZSS, Glonass |
|
Accuracy |
CEP up to 2 m , speeds up to 0.5 m/s |
|
Power Supply |
5 V (from UAV CAN bus) |
|
Operating Voltage |
4.5 V – 5.5 V |
|
Operating Temp. |
-20 °C to +85 °C |
|
Connector Type |
JST-GH |

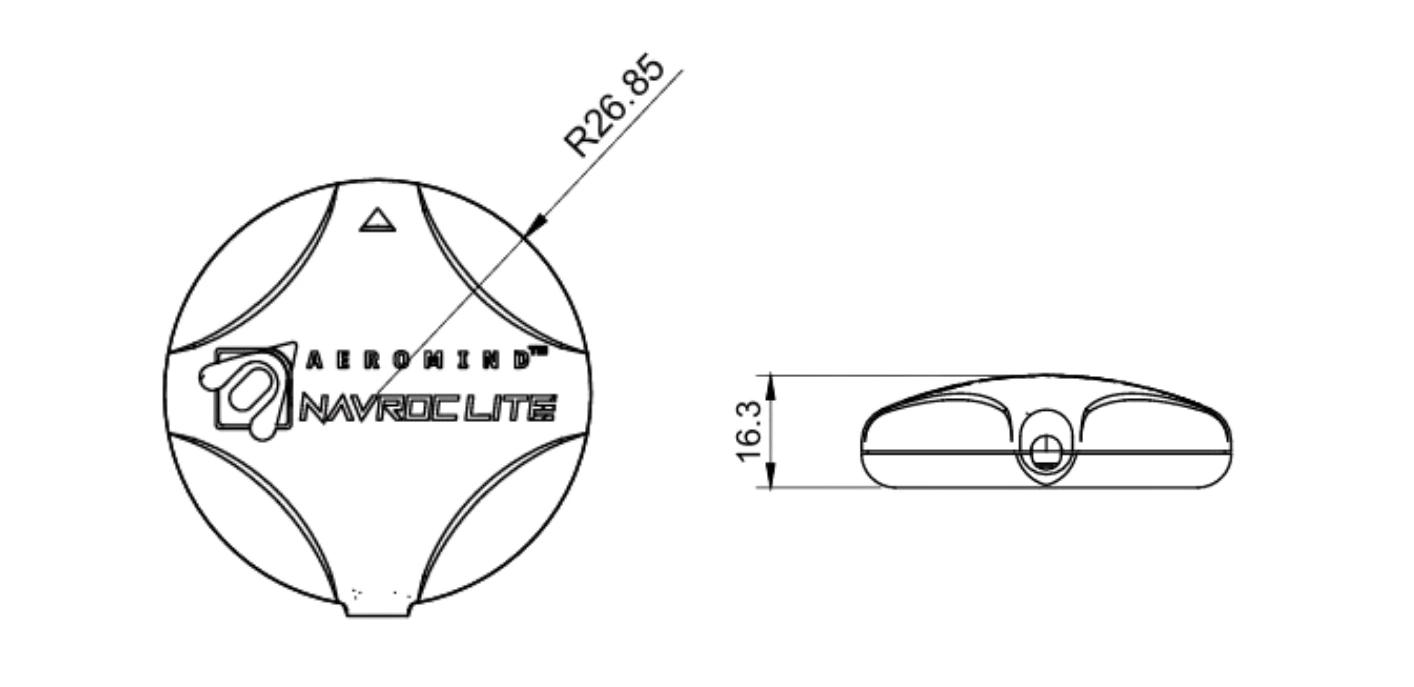

Dimension
